Advanced performance, practical
multi-function and convenient slim-size!
|
- PLL synthsized system with microprocessor
- Easy channel number direct key entry
- Memory recall function up to 30CHs
- Full CHs or memorized CHs only scanning
- Battery saving with 3-level intervals
- Unnecessary frequencies SKIP on scanning
- Dual watch function
- Key lock function
- Low battery warning indicator
- Optional CTCSS function
- 200CHs AM 4W/FM 4W -Repeater function -5KHz OFF
function
| |

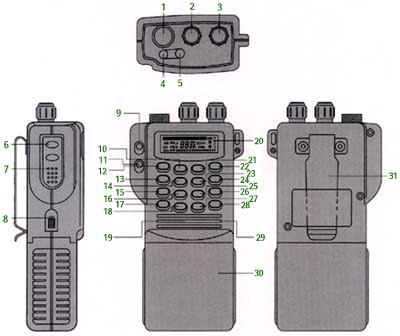

| 1) ANTENNA CONNECTOR |
17) CHDOWN/SCAN BUTTON |
| 2) SQUEICH CONTROL |
18) DUAL WATCH BUUTON |
| 3) POWER ON/OFF VOLUME CONTROL |
19) SPEAKER |
| 4) MIC JACK |
20) LCD DISPLAY |
| 5) SPK JACK |
21) LOCK BUTTON |
| 6) MONITOR BUTTON |
22) RECALL &
MEMORY
/ MEMORY CLEAR BUTTON |
| 7) PUSH-TO-TALK BUTTON |
23) SAVE BUTTON |
| 8) REMOVE LATCH |
24) AM/FM BUTTON |
| 9) FUNCTION BUTTON |
25) BAND BUTTON |
| 10) BEEP BUTTON |
26) EMERGENCY/-5KHz BUTTON |
| 11) LAMP BUTTON |
27) CH UP/SCAN BUTTON |
| 12) POWER HI/LO BUTTON |
28) CLEAR/ENTER BUTTON |
| 13) REPEAT BUTTON |
29) ELECT MICROPHONE |
| 14) REVERSE BUTTON |
30) BATTERY CASE |
| 15) TONE SQUELCH BUTTON |
31) BELT CLIP |
| 16) SKIP BUTTON |
|
|
|
9) SA-27
|
10) RA-27
|
11) HF-27S
|
12)HF-27L
|
|
1) BC-12 |
2) BC-09 |
|
|
|
|
3) NP-126 |
4) DW-12 |
|
|
|
|
5) DA-27 |
6) ESM-02 |
|
|
|
|
7) CC-27 |
8) CP-01 |
| 1) 8Cells Battery Case |
7) Carrying Case |
| 2) 6Cells Battery Case |
8) Ciga Lighter DC Plug |
| 3) Super Nicd Battery Pack(12.0V
600mA) |
9) Short Antenna(Length 240mm) |
| 4) DC Wall Charger |
10) Rubber Duck Antenna(Length
253mm) |
| 5) External DC/Charge slide Adapter |
11) Short Flex Antenna(Length
635mm) |
| 6) External Speaker / Microphone |
12) Hi-Flex Antenna(Length
740mm) |
|
1.
GENERAL |
| CHANNEL |
40CHs |
| FREQUENCY |
26.965MHz TO 27.405MHz |
| FREQUENCY GENERATION |
PLL SYNTHESIZER |
| FREQUENCY STABILITY |
+0.001% |
| MODULATION |
F3E/A3E |
| IMPEDANCE |
50§Ù |
| POWER SOURCE |
DC 7.2V TO 15.6V |
| OPERATING TEMPERATURE |
-10¡É TO +60¡É |
| DIMENSIONS |
55(W) ¡¿ 130(H) ¡¿
36(D)mm
INCLUDE 6CELLS BATTERY CASE |
| WEIGHT |
0.4kg W/O
BATTERY |
|
2. RECEIVER
SECTION |
| CIRCUIT TYPE |
DUAL CONVERSION
SUPERHETERODYNE |
| IF FREQUENCY |
1'st IF : 10.695MHz, 2'nd IF :
455KHz |
| SENSITIVITY |
0.5uV IN FM FOR 20dB SND
(W/CCITT)
0.7uV IN AM FOR 10dB S/N |
| SELECTIVITY |
60 dB min |
| SPURIOUS REJECTION |
60 dB min |
| INTER MODULATION DISTORTION |
54 dB min MEASURED ETSI |
| S/N RATIO |
40 dB min |
| AUDIO OUTPUT £À 10% THD |
500mW £À 8§Ù |
| CURRENT CONSUMPTION STAND BY |
25mA W/O POWER
SAVING MODE |
|
3. TRANSMITTER
SECTION |
| POWER OUTPUT |
HI 4.0W, LO 1.0W AT 12.0V DC |
| MODULATION |
2KHz IN FM, 85% IN AM |
| DISTORTION |
3% |
| S/N RATIO |
40dB min |
| CURRENT DRAIN |
1200 mA max |
| SPURIOUS RESPONESE REJECTION |
ALL HARMONICS & SPURIOUS
SUPPRESSION GREATER THAN ETSI REQUIREMENT |
|
